Heavy-Duty Agricultural Platform Trailer

Description

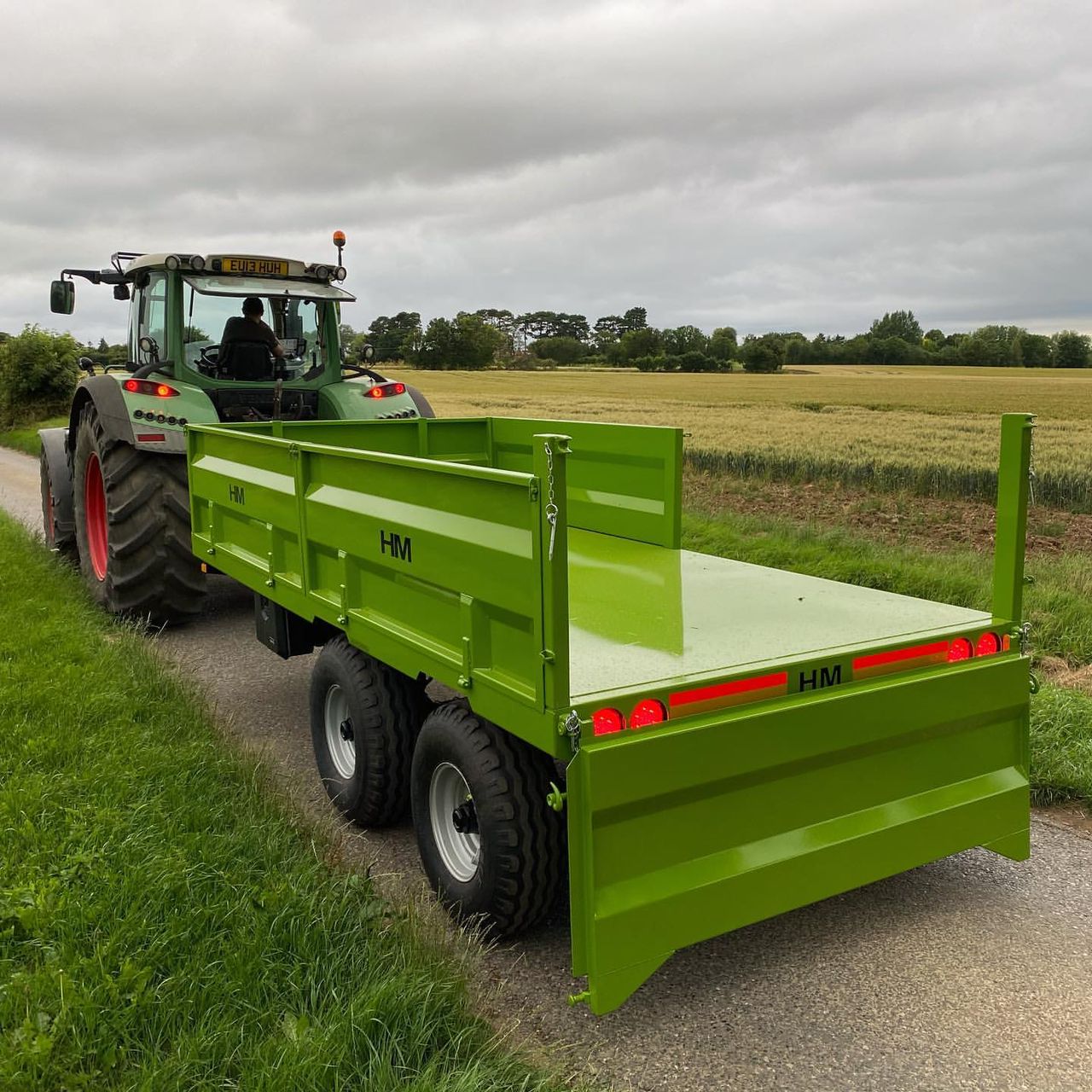

Heavy-Duty Agricultural Platform Trailer

The heavy-duty agricultural platform trailer is a versatile transport solution for farms, construction sites, landscaping businesses, and industrial operations. Its reinforced steel platform and tandem axle design provide excellent strength, stability, and load distribution.

The trailer is equipped with removable side panels and detachable front and rear gates, allowing it to be used as either a flatbed trailer or a high-sided transport trailer. This flexible design makes it suitable for carrying hay bales, pallets, machinery, timber, agricultural supplies, and a wide range of general cargo.

Large agricultural tires and high ground clearance allow reliable operation on fields, farm tracks, and uneven surfaces, while the durable painted finish helps protect the trailer during regular outdoor use.

Main Features

• Heavy-duty steel chassis and reinforced loading platform

• Open flatbed design for flexible cargo handling

• Removable and foldable side panels

• Detachable front and rear gates for convenient loading and unloading

• Tandem axle configuration for improved stability and weight distribution

• Large agricultural tires designed for field and road operation

• High ground clearance for uneven terrain

• Reinforced towing drawbar for safe tractor operation

• Reflective safety strips and rear lighting

Product Specifications

• Trailer type: Agricultural flatbed platform trailer

• Construction: Heavy-duty welded steel frame

• Loading design: Open flatbed with removable sideboards

• Payload capacity:12 tonnes

• Deck area: 35 square metres

• Platform length: 7.0 metres

•Platform width: 2.6 metres

• Sideboard height: 1.0 metre

• Overall length: 9.5 metres, including the drawbar

• Overall width: 2.8 metres

• Overall height: 2.3 metres, depending on the sideboard position

•Arrangement: Tandem agricultural axle

• Tires: Heavy-duty flotation or agricultural tires

• Suspension: Heavy-duty leaf-spring or agricultural suspension

• Braking system: Hydraulic, pneumatic, or mechanical braking, depending on configuration

• Lighting: Rear lamps, indicators, reflectors, and reflective safety markings

• Towing connection: Tractor-compatible drawbar and hitch system

• Finish: Industrial paint or corrosion-resistant powder coating

• Recommended use: Agricultural, landscaping, construction, and general transport applications

Loading Platform

The flat loading platform provides a practical and versatile surface for carrying a wide range of materials. The low platform height makes it easier to load pallets, hay bales, equipment, timber, and other large items.

The removable sideboards can be lowered or completely removed when transporting oversized loads. When fitted, the side panels help contain loose materials and provide additional load security during transportation.

Capacity and DimensionsThe trailer is designed to carry 12 tonnes, . Its platform is estimated to be 7.0 metres long and 2.6 metres wide, providing enough space for agricultural products, machinery, pallets, and other bulky cargo.

The actual payload must be determined according to the trailer’s rated capacity, axle limits, tire specifications, road regulations, and the towing tractor’s capability. Heavy or concentrated loads should be distributed evenly across the platform.

This agricultural platform trailer is suitable for:

• Transporting hay and straw bales

• Carrying pallets, bags, and agricultural supplies

• Moving farm machinery and equipment

• Transporting timber, pipes, and construction materials

• Carrying animal feed and fertilizer

• Hauling harvested crops and field products

• Landscaping and estate maintenance

• General farm, industrial, and construction transport
