Single Axle Hydraulic Tipping Trailer

Description

Hydraulic Tipping Trailer

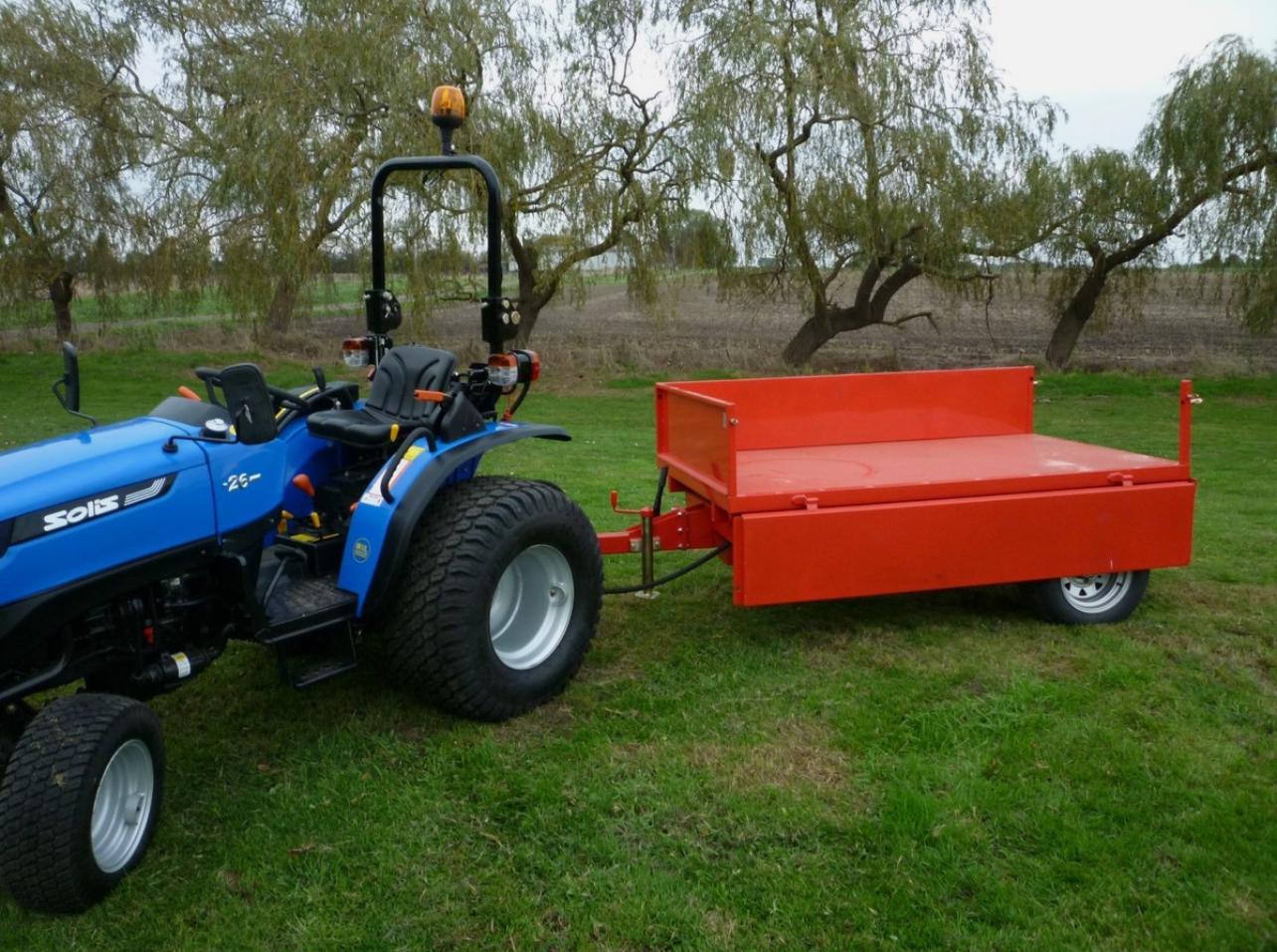

A versatile hydraulic tipping trailer for compact tractors, offering a practical solution for transporting and unloading a wide range of materials. The sturdy steel body provides excellent durability, while the high sides allow the trailer to carry substantial volumes of loose material.

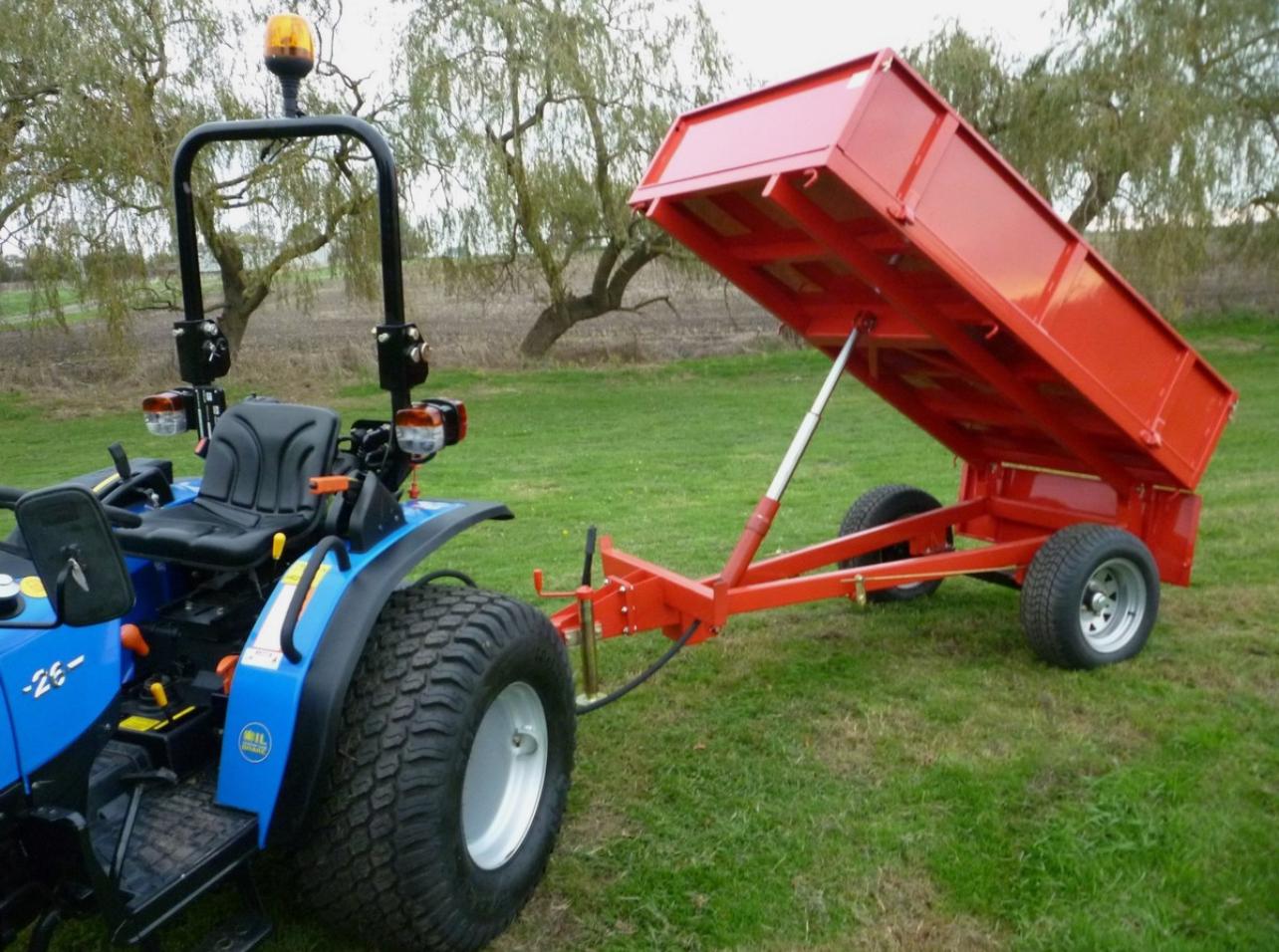

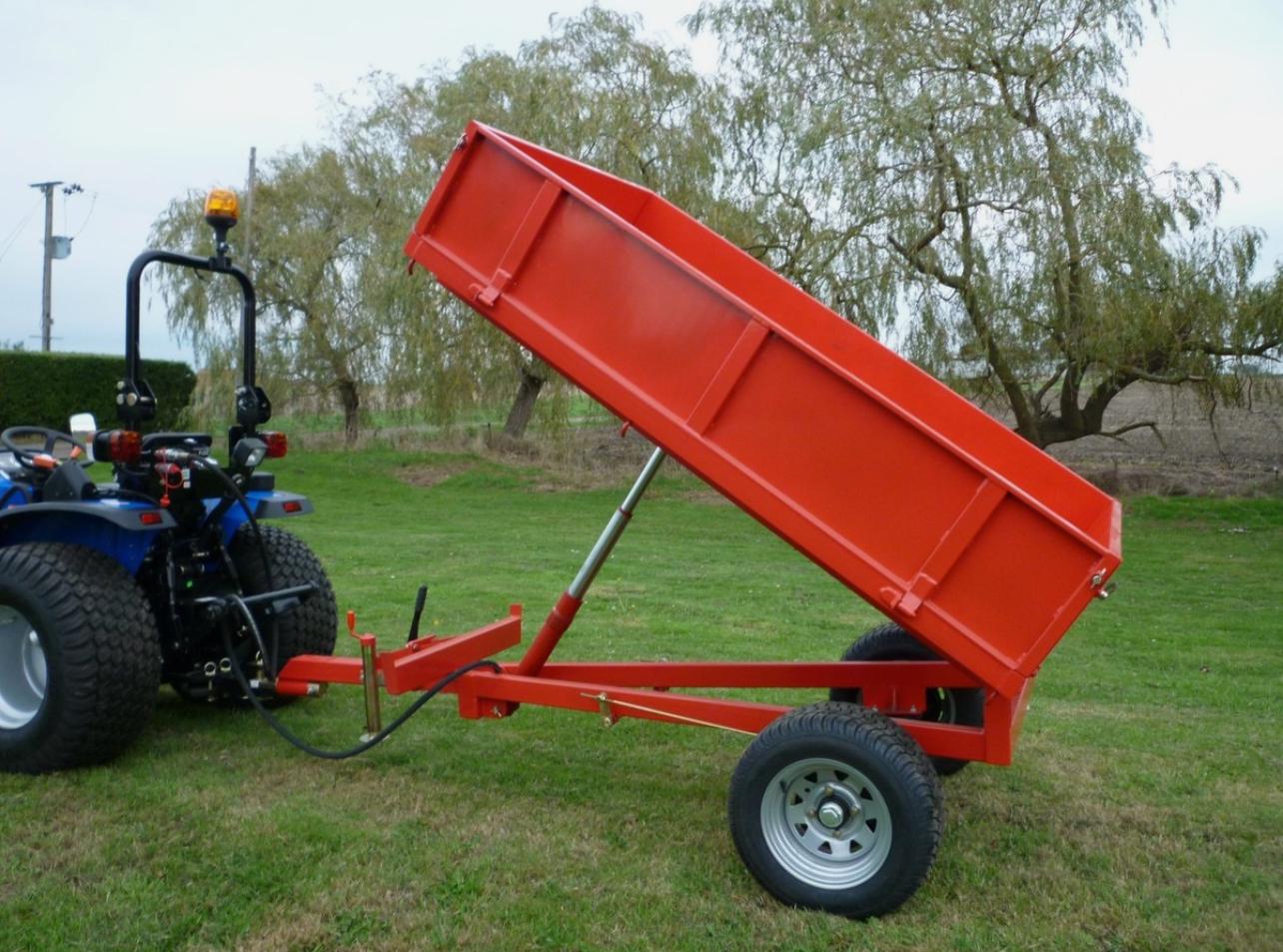

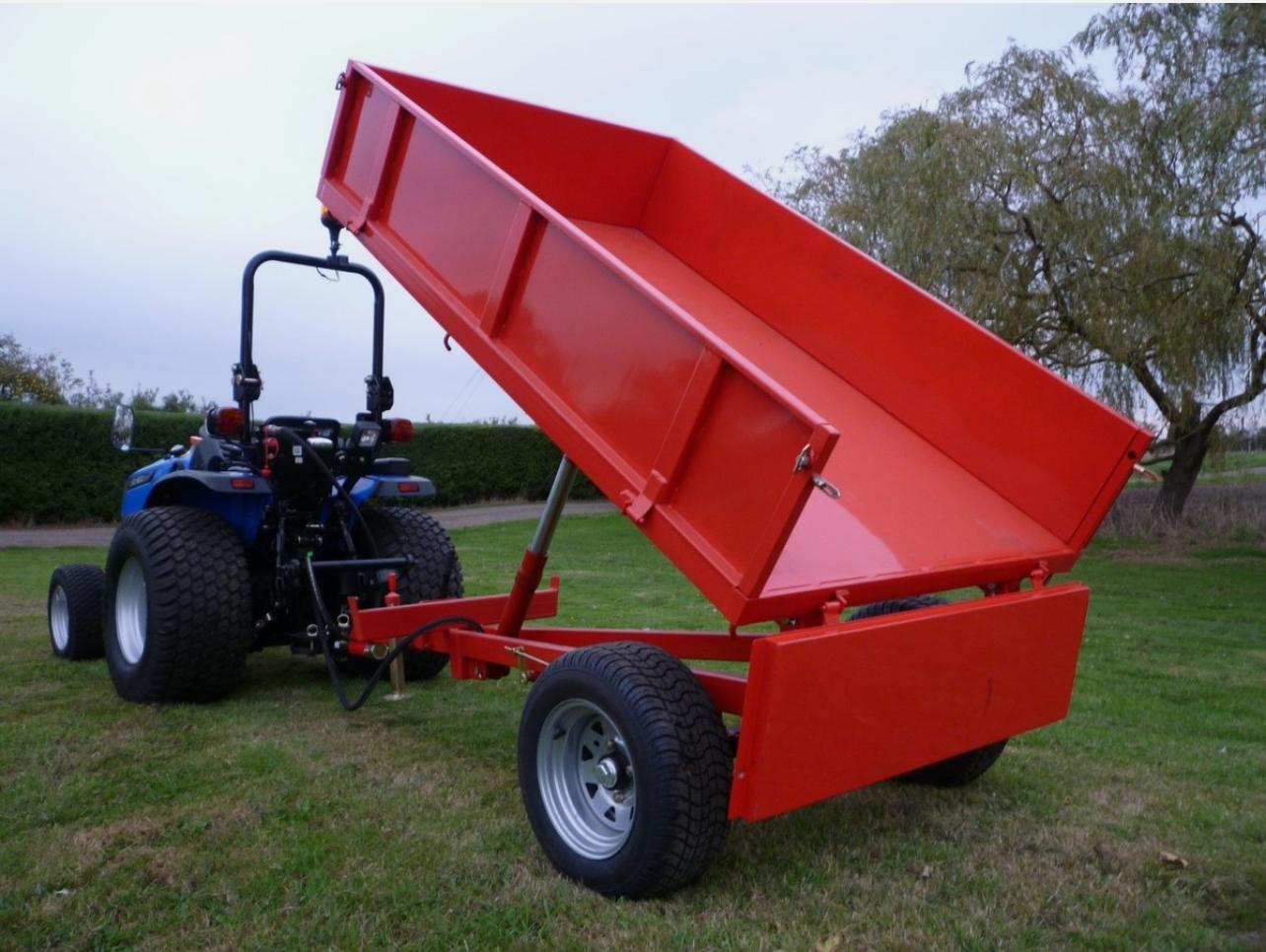

The hydraulic tipping mechanism raises the body smoothly, allowing contents to be discharged quickly at the desired location. The rear tailgate provides easy access and helps retain the load during transport.

With its durable construction, wide tyres and tractor-compatible hydraulic system, this trailer is an excellent choice for farms, smallholdings, landscaping businesses, grounds maintenance contractors and private landowners.

Features

• Hydraulic tipping function for easy unloading

• Heavy-duty steel load body

• Single-axle trailer design

• High-sided body for carrying loose and bulky materials

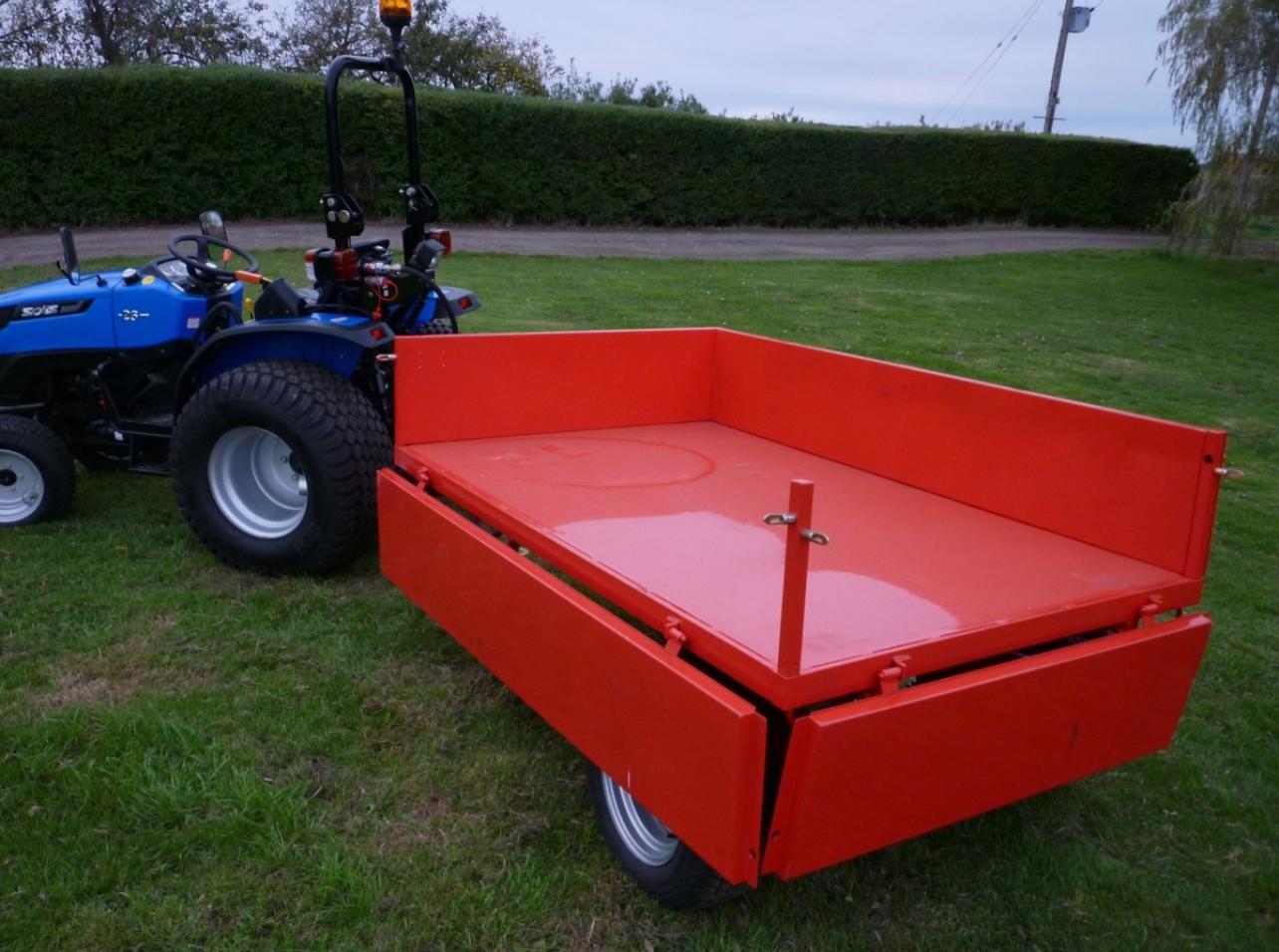

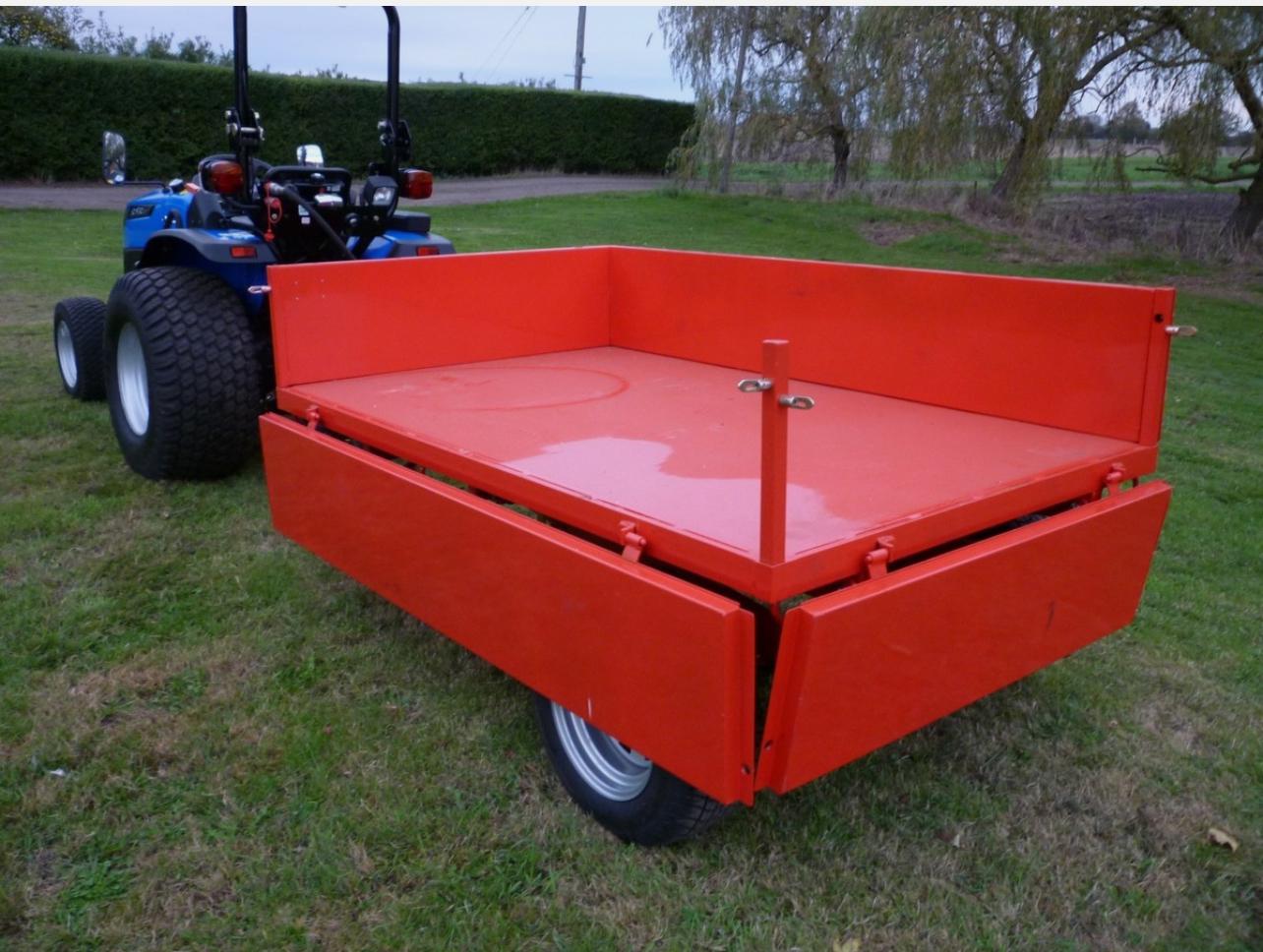

• Rear tailgate for controlled loading and unloading

• Strong steel chassis and drawbar

• Large pneumatic tyres for improved stability and traction

• Designed for use with compact tractors

• Tractor hydraulic connection for operating the tipping ram

• Durable painted finish

• Suitable for soil, gravel, sand, wood, manure, garden waste and general materials

Trailer Dimensions

• Internal body length: approximately 2.4 m / 8 ft

• Internal body width: approximately 1.2–1.5 m / 4–5 ft

• Body height: approximately 450–600 mm

• Overall trailer length: approximately 3.5–4.0 m, including the drawbar

• Overall width: approximately 1.6–1.9 m

• Axles: 1

• Wheels: 2 large pneumatic tyres

• Tipping angle: approximately 35–45 degrees

• Hydraulic system: tractor-operated hydraulic tipping ram

• Body material: painted or powder-coated steel

• Chassis material: heavy-duty welded steel
