16 Tons Heavy-Duty Hydraulic Tipping Trailer

Description

Heavy-Duty Hydraulic Tipping Trailer

The heavy-duty hydraulic tipping trailer is a versatile and reliable solution for transporting bulk materials in agricultural, construction, and industrial environments. Its reinforced steel body, high side walls, tandem-wheel design, and durable agricultural tires provide excellent strength, stability, and carrying capacity.

The hydraulic rear-tipping system enables fast and efficient unloading, helping operators save time and improve productivity. Designed for use with compatible tractors, this trailer is suitable for carrying crops, grain, soil, sand, gravel, manure, fertilizer, wood chips, and other bulk materials.

With its robust chassis and durable construction, the trailer is built to perform reliably in demanding field conditions and on uneven terrain.

Product Features

• Heavy-duty reinforced steel tipping body

• High side panels for increased load volume

• Hydraulic tipping system for quick and efficient unloading

• Strong steel chassis designed for demanding applications

• Large agricultural tires for improved traction and stability

• Tandem-wheel configuration for better load distribution

• Reinforced drawbar for safe and reliable towing

• Locking side and rear doors for secure transportation

• Reflective safety markings for improved visibility

• Durable painted finish for protection against corrosion

• Suitable for use with agricultural tractors and compatible towing equipment

Technical Specifications

• Trailer type: Hydraulic tipping agricultural trailer

• Body construction: Reinforced pressed-steel panels

• Tipping direction: Rear tipping

• Estimated payload capacity: 16 tonnes

• Body volume: 25 cubic metres

• Internal body length: 6.5 metres

• Internal body width: 2.5 metres

• Side-wall height: 1.8 metres

• Overall length: 8.5 metres, including the drawbar

• Overall width: 2.8 metres

• Overall height: 3.2 metres

• Axle arrangement: Tandem agricultural axle configuration

• Tires: Heavy-duty flotation or agricultural tires

• Hydraulic operation: Tractor-powered hydraulic tipping system

• Braking system: Hydraulic, pneumatic, or mechanical braking, depending on configuration

• Suspension: Heavy-duty agricultural suspension

• Suspension: Heavy-duty agricultural suspension

• Body finish: Industrial painted or coated steel finish

• Recommended tractor: Tractor with sufficient hydraulic capacity and towing power

Dimensions and Load Capacity

The trailer has a large high-sided body that provides considerable loading capacity while maintaining a practical overall width for agricultural and industrial operations. The reinforced side panels are designed to withstand regular loading and unloading of heavy or loose materials.

The estimated loading capacity is between 10 and 16 tonnes, depending on the trailer model and axle rating. The actual capacity will also depend on the density of the material being transported. For example, grain and wood chips may fill the body before reaching the maximum weight, while sand, gravel, and soil may reach the maximum payload more quickly.

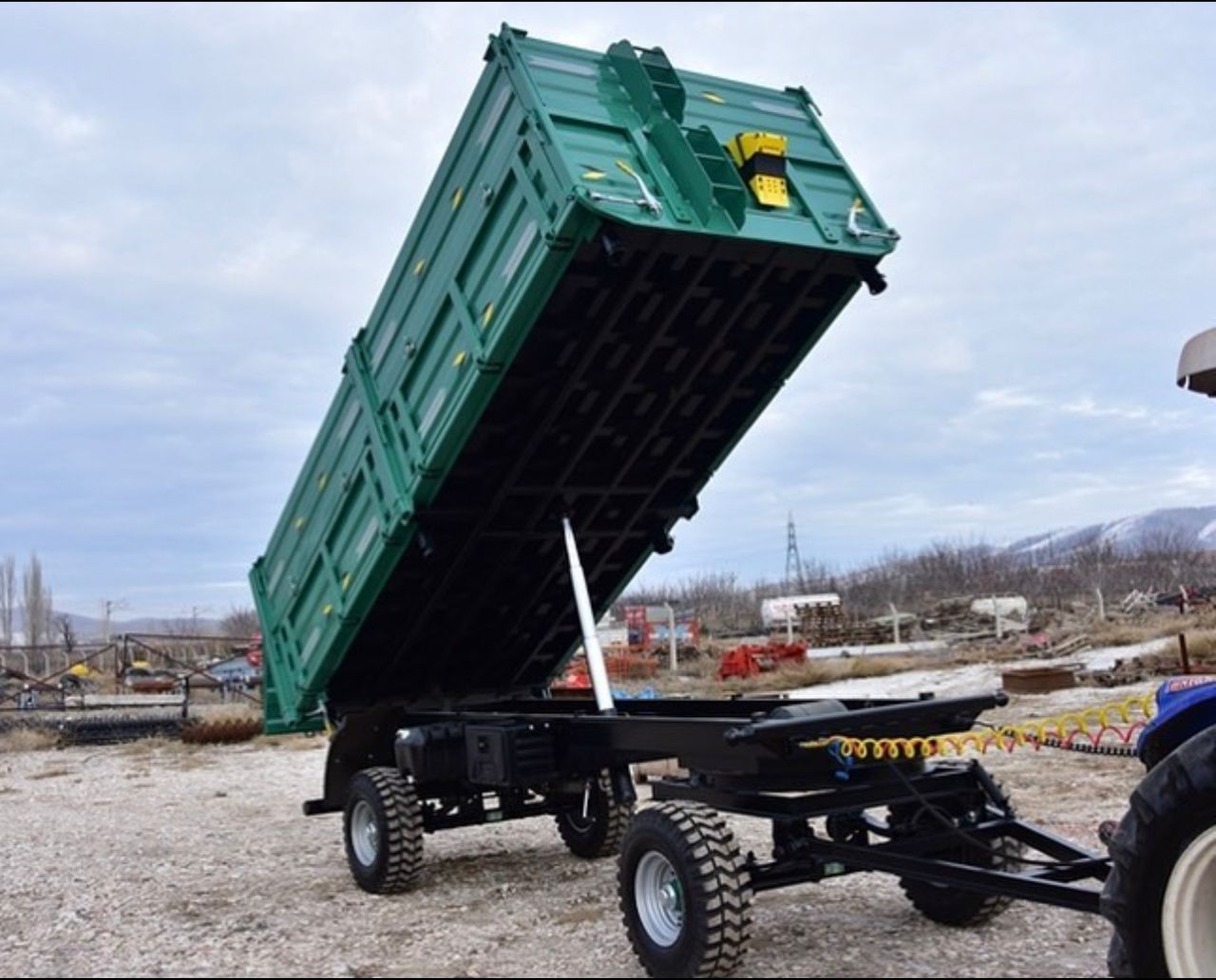

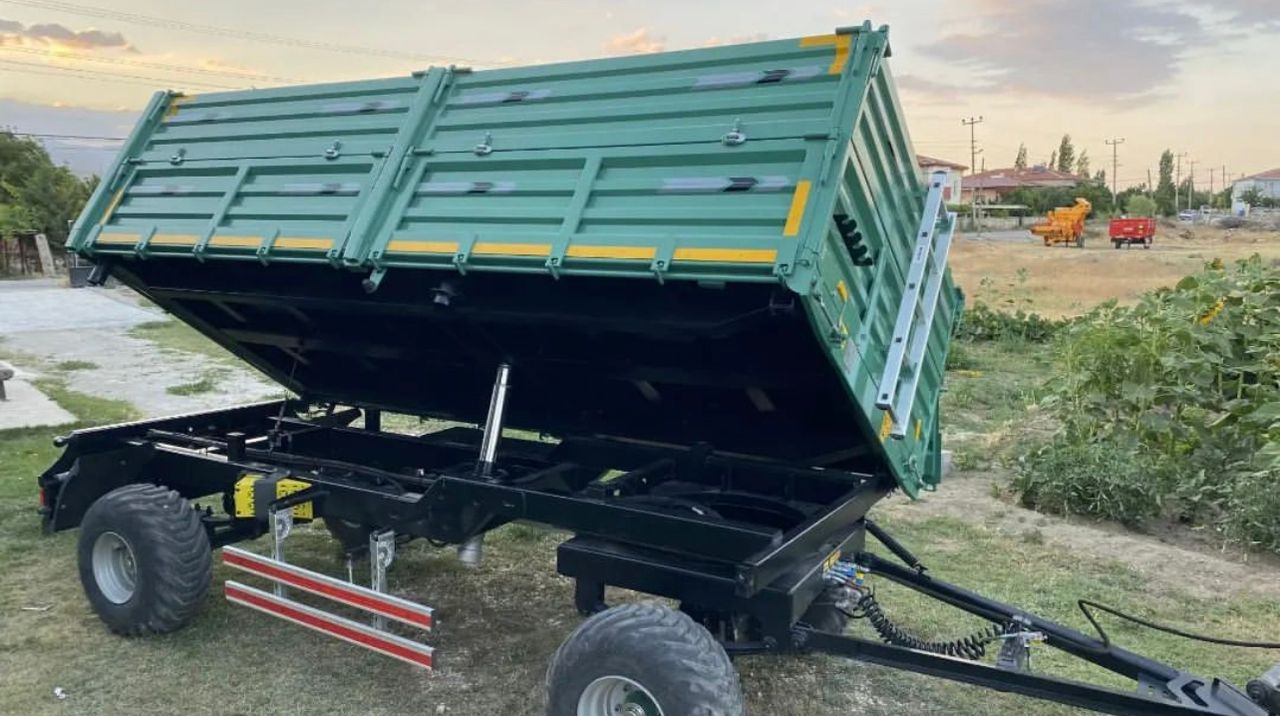

Hydraulic Tipping System

The hydraulic tipping system allows the trailer body to be raised for quick rear unloading. This reduces manual handling and improves productivity during harvesting, earthmoving,

The hydraulic tipping system allows the trailer body to be raised for quick rear unloading. This reduces manual handling and improves productivity during harvesting, earthmoving, construction, and general farm operations.

The trailer must be connected to a tractor or towing vehicle with a compatible hydraulic system. Hydraulic pressure, oil flow, tipping angle, and lifting capacity should be confirmed before operation.

This trailer is suitable for:

• Transporting harvested crops and grain

• Carrying soil, sand, gravel, and aggregate

• Moving manure, compost, and fertilizer

• Transporting wood chips and agricultural waste

• Construction and landscaping work

• Farm, estate, and municipal maintenance

• Industrial bulk-material handling

• General off-road and agricultural transportation
